LumenPnP BOM v4.0.1
Download the Source Here
| Part Name | Image | Quantity | Part Type | Source 1 | Source 2 | Optional | Note |
|---|
| front-left-leg |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| nozzle-rack |  | 1 | FDM | https://opulo.io/products/cp40-pnp-nozzle | Download all 3D printed parts at the link at the top of the page. | | |
|---|
| datum-board-mount |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| peek-cable-clamp |  | 3 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| extrusion-cable-clip |  | 16 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| belt-tension-arm |  | 3 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| bottom-camera-mount |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| bottom-light-mount |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | Print in white filament. This part is used as a light diffuser. |
|---|
| bottom-camera-cover |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| back-leg |  | 2 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| front-right-leg |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| aux-staging-plate-foot |  | 1 | FDM | https://www.opulo.io/products/staging-plate | Download all 3D printed parts at the link at the top of the page. | | This part is used for stabilizing any additional staging-plate(s) attached to the LumenPnP. Attaches to a staging-plate with 1x M3x14mm bolt and 1x M3-square-nut. |
|---|
| x-gantry-front |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| belt-clamp |  | 6 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| z-gantry-backplate-left |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | Print in red PLA |
|---|
| x-idler-mount |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| x-motor-mount |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| z-gantry |  | 2 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| y-gantry-left |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| z-gantry-backplate-right |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | Print in blue PLA |
|---|
| x-gantry-back |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| back-leg-extension |  | 2 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| front-leg-extension |  | 2 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| top-light-mount |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | Print in white filament. This part is used as a light diffuser. |
|---|
| control-box |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| control-box-lid |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| y-gantry-right |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| squaring-bracket |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | For use with aligning the front and rear feeder rails to staging plates. |
|---|
| nozzle-camera-mask |  | 2 | FDM | Download all 3D printed parts at the link at the top of the page. | | | This part can be pressed onto a nozzle holder to prevent any bright objects above the machine from interfering with bottom vision. Should be printed in a dark color. |
|---|
| y-limit-striker |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| blade12 |  | 2 | FDM | https://www.opulo.io/products/slot-harness-kit | Download all 3D printed parts at the link at the top of the page. | | |
|---|
| blade13 |  | 2 | FDM | https://www.opulo.io/products/slot-harness-kit | Download all 3D printed parts at the link at the top of the page. | | |
|---|
| static-camera-foot |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | This part is the foot for use with the bottom-camera-mount that would be installed on a LumenPnP's primary staging-plate. |
|---|
| cable-splay |  | 1 | FDM | Download all 3D printed parts at the link at the top of the page. | | | |
|---|
| board-support |  | 8 | FDM | https://www.opulo.io/products/getting-started-kit | Download all 3D printed parts at the link at the top of the page. | | This part is meant to help support a PCB mounted on a staging plage. Print in PLA. |
|---|
| board-mount-static |  | 4 | FDM | https://www.opulo.io/products/getting-started-kit | Download all 3D printed parts at the link at the top of the page. | | This part is meant to help hold a PCB on the staging plate. Use 1x M3x10mm hex head screw and 1x M3 wing nut for each one. Print in PLA. |
|---|
| board-mount-dynamic |  | 4 | FDM | https://www.opulo.io/products/getting-started-kit | Download all 3D printed parts at the link at the top of the page. | | This part is meant to help hold a PCB on the staging plate. Use 1x M3x10mm hex head screw and 1x M3 wing nut for each one. Print in PETG. |
|---|
| 8mm-strip-feeder |  | 1 | FDM | https://www.opulo.io/products/lumenpnp-strip-feeder?variant=44789644132539 | Download all 3D printed parts at the link at the top of the page. | | This part can be mounted to the staging plate and hold 8mm tape. Use 2x M3x10mm-ultra-low-profile-button-head screws and 2x M3 wing nuts to attach it. |
|---|
| 12mm-strip-feeder |  | - | FDM | https://www.opulo.io/products/lumenpnp-strip-feeder?variant=44789644198075 | Download all 3D printed parts at the link at the top of the page. | Optional | This part can be mounted to the staging plate and hold 12mm tape. Use 2x M3x10mm-ultra-low-profile-button-head screws and 2x M3 wing nuts to attach it. |
|---|
| 16mm-strip-feeder |  | - | FDM | https://www.opulo.io/products/lumenpnp-strip-feeder?variant=44789644230843 | Download all 3D printed parts at the link at the top of the page. | Optional | This part can be mounted to the staging plate and hold 16mm tape. Use 2x M3x10mm-ultra-low-profile-button-head screws and 2x M3 wing nuts to attach it. |
|---|
| 24mm-strip-feeder |  | - | FDM | https://www.opulo.io/products/lumenpnp-strip-feeder?variant=44789644263611 | Download all 3D printed parts at the link at the top of the page. | Optional | This part can be mounted to the staging plate and hold 24mm tape. Use 2x M3x10mm-ultra-low-profile-button-head screws and 2x M3 wing nuts to attach it. |
|---|
| 32mm-strip-feeder |  | - | FDM | https://www.opulo.io/products/lumenpnp-strip-feeder?variant=44789644296379 | Download all 3D printed parts at the link at the top of the page. | Optional | This part can be mounted to the staging plate and hold 32mm tape. Use 2x M3x10mm-ultra-low-profile-button-head screws and 2x M3 wing nuts to attach it. |
|---|
| adj-strip-feeder |  | - | FDM | https://www.opulo.io/products/lumenpnp-strip-feeder?variant=44789644329147 | Download all 3D printed parts at the link at the top of the page. | Optional | This 2-piece part can be mounted to the staging plate and adjusted to hold varying widths of tape (32mm+). Each side uses 2x M3x10mm-ultra-low-profile-button-head screws and 2x M3 wing nuts for attachment. |
|---|

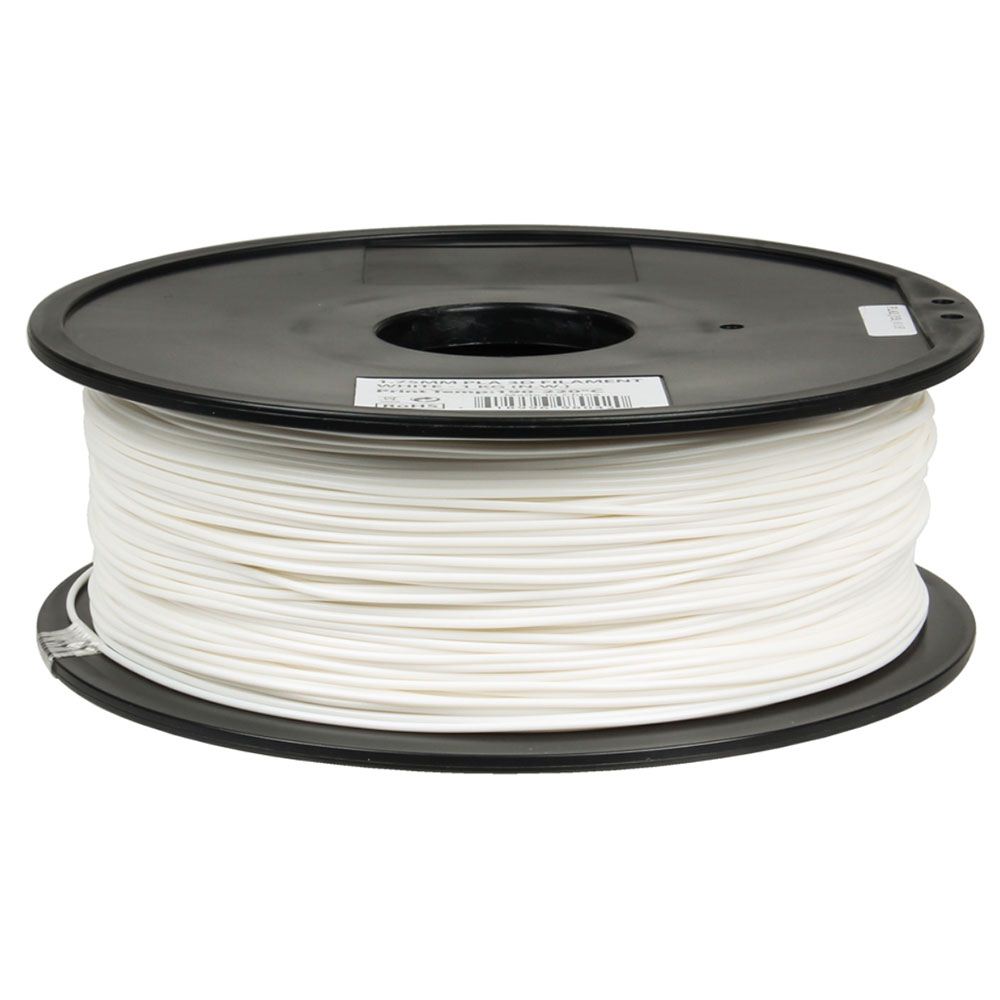

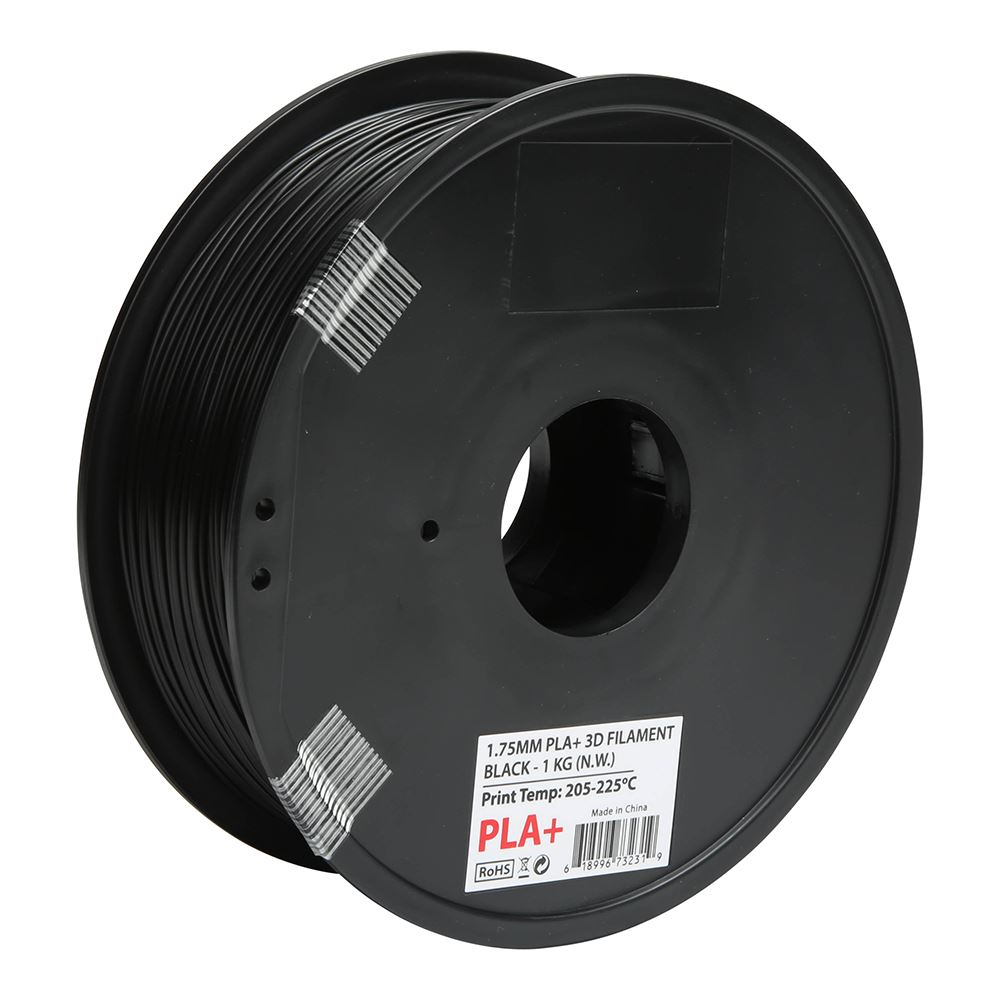

| PLA-filament |  | 1.75 | FIL | Link | | | Units in kg.
Print top-light-mount and bottom-light-mount in a white.
Print z-gantry-backplate-left in red and ...-right in blue. |
|---|
| PETG-filament |  | 0.05 | FIL | Link | | | Units in kg. Use a white material. Use for universal PCB fixture components. |
|---|
| m3x10-thumb-screw |  | 2 | FST | Link | | | This is a custom part designed by Opulo. Generic M3x10 bolts can be used instead if prefered. |
|---|
| DIN315 Nut M3 Wingnut |  | 12 | FST | Link | | | DIN315 - for mounting universal-PCB-fixture components (8), nozzle-rack (2), and 8mm-strip-feeder (2) to a staging-plate |
|---|
| DIN557 Nut M5 |  | 7 | FST | Link | | | Square nut |
|---|
| DIN562 Nut M3 |  | 1 | FST | Link | | | Square nut |
|---|
| DIN985 Nut M5 |  | 8 | FST | Link | | | Lock nut |
|---|
| M3x12mm-self-tapping-flat-head |  | 4 | FST | Link | | | Flat head, self tapping - for installing top-light-mount (2) and xy-limit-switch (2). Listed source requires a T8 torx driver. |
|---|
| ISO10642 Screw M3x16 |  | 1 | FST | Link | | | Flat head, machine screw - for use with adjusting z-limit-switch actuation point on z-gantry-backplate-right |
|---|
| M3x8mm-self-tapping-flat-head |  | 20 | FST | Link | | | Flat head, self tapping - for installing blade13-PCB and blade12-PCB onto 3D prints |
|---|
| ISO10642 Screw M5x16 |  | 8 | FST | Link | | | Flat head, machine screw |
|---|
| ISO4017 Screw M3x10 |  | 10 | FST | Link | | | Hex head, machine screw - for mounting universal-PCB-fixture components (8), nozzle-rack (2), and 8mm-strip-feeder (2) to a staging-plate |
|---|
| ISO4032 Nut M3 |  | 16 | FST | Link | | | |
|---|
| ISO4032 Nut M5 |  | 31 | FST | Link | | | |
|---|
| ISO4762 Screw M2.5 |  | 12 | FST | Link | | | Socket head |
|---|
| ISO4762 Screw M3x16 |  | 15 | FST | Link | | | Socket head |
|---|
| ISO4762 Screw M3x30 |  | 2 | FST | Link | | | Socket head |
|---|
| ISO4762 Screw M5x10 |  | 54 | FST | Link | | | Socket head |
|---|
| ISO4762 Screw M5x16 |  | 9 | FST | Link | | | Socket head |
|---|
| ISO4762 Screw M5x25 |  | 7 | FST | Link | | | Socket head |
|---|
| ISO4762 Screw M5x40 |  | 7 | FST | Link | | | Socket head |
|---|
| M3x12mm-self-tapping-button-head |  | 12 | FST | Link | | | Button head, self tapping - for installing limit switch and linear rails onto x-gantry-front (8), and motherboard-rev05 onto mobo-mount (4). |
|---|
| ISO7380-1 Screw M3x14 |  | 4 | FST | Link | | | Button head - used for installing peek-cable-clamp (3) and aux-staging-plate-foot (1) |
|---|
| ISO7380-1 Screw M3x8 |  | 48 | FST | Link | | | Button head |
|---|
| ISO7380-1 Screw M5x8 |  | 20 | FST | Link | | | Button head |
|---|
| M5-tslot-nut |  | 60 | FST | Link | | | |
|---|
| M3-cap-nut |  | 3 | FST | Link | | | |
|---|
| m5-thumb-screw |  | 1 | FST | Link | | | |
|---|
| M3x8-ULP-BHCS |  | 2 | FST | Link | Link | | Source 1 is a 2mm hex socket head available only in high volume source. Source 2 is a flat head drive available in low volume. |
|---|
| 525mm-MGN12H |  | 1 | MISC | Link | | | Each rail includes 1pcs MGN12H-linear-rail-carriage |
|---|
| 550mm-MGN12H |  | 2 | MISC | Link | | | Each rail includes 1pcs MGN12H-linear-rail-carriage |
|---|
| m3_t-nut_bar-525mm |  | 3 | MCM | Link | | | This is custom made by LDO for Opulo. Individuals self-sourcing their machine can instead use an additional 36x m3-t-nut. |
|---|
| n40-nozzle |  | 1 | MCM | Link | | | |
|---|
| n24-nozzle |  | 1 | MCM | Link | | | |
|---|
| n08-nozzle |  | 1 | MCM | Link | | | |
|---|
| n75-nozzle |  | 1 | MCM | Link | | | |
|---|
| n14-nozzle |  | 1 | MCM | Link | | | |
|---|
| n045-nozzle |  | 1 | MCM | Link | | | |
|---|
| GT2-idler |  | 4 | MISC | Link | Link | | |
|---|
| GT2-pulley |  | 4 | MISC | Link | Link | | |
|---|
| z-belt-loop |  | 1 | MISC | Link | | | 6mm wide, 260mm length, 130 teeth, GT2 profile. |
|---|
| gt2-timing-belt |  | 5 | MISC | Link | | | Units in meters. |
|---|
| NEMA17-stepper |  | 4 | MTR | Link | | | |
|---|
| nozzle-holder |  | 2 | MCM | Link | | | |
|---|
| nozzle-holder-inner-body |  | 2 | MISC | | | Optional | Click link above to download source - for use with building 2x nozzle-holder from scratch |
|---|
| nozzle-holder-outer-body |  | 2 | MISC | | | Optional | Click link above to download source - for use with building 2x nozzle-holder from scratch |
|---|
| nozzle-holder-spring |  | 2 | MISC | Link | | Optional | Click link above to download source - for use with building 2x nozzle-holder from scratch |
|---|
| 4mmIDx0.6mmCS-o-ring |  | 4 | MISC | Link | | Optional | Click link above to download source - for use with building 2x nozzle-holder from scratch |
|---|
| 2mm-pin |  | 2 | MISC | Link | | Optional | ISO 2338-H8 undersized 2mm dowel pin - for use with building 2x nozzle-holder from scratch |
|---|
| precision-machine-oil |  | 0.02 | MISC | Link | | Optional | Unit in milliliters - for use with building nozzle-holder from scratch |
|---|
| NEMA11-hollow-shaft-stepper |  | 2 | MTR | Link | | | |
|---|
| lubricant-packet |  | 1 | MISC | Link | Link | | Lubricant is required for the O-rings on the nozzle holder. Before use, apply lubricant to the end of the nozzle holder and insert into every nozzle tip until the lubricant has coated the inside of the tip and the resistance decreases. Do NOT use white lithium grease for this; it can damage the O-rings. |
|---|
| rotary-pneumatic-adapter |  | 2 | MISC | Link | | | |
|---|
| solenoid-valve |  | 2 | PNU | Link | | | |
|---|
| vacuum-pump |  | 2 | PNU | Link | | | |
|---|
| reducing-union-tee-4-6-4 |  | 2 | PNU | Link | Link | | |
|---|
| mobo-REV05 |  | 1 | PCA | Link | | | Click link above to download source |
|---|
| pump1-harness |  | 1 | CHA | Link | | | Click link above to download source. Left Pump. |
|---|
| pump2-harness |  | 1 | CHA | Link | | | Click link above to download source. Right Pump. |
|---|
| soft-pvc-tubing-6x4-red |  | 0.15 | PNU | Link | | | Units in meters. Used for left side pnumatics. |
|---|
| soft-pvc-tubing-6x4-blue |  | 0.15 | PNU | Link | | | Units in meters. Used for right side pnumatics. |
|---|
| usb-b-to-usb-a-cable |  | 1 | CHA | Link | Link | | We recommend a 2m long cable. |
|---|
| drag-chain-end |  | 4 | MISC | Link | | | 15mm x 30mm drag chain end link with 2x M5 mounting holes |
|---|
| drag-chain-link |  | 64 | MISC | Link | | | 15mm x 30mm drag chain middle links |
|---|
| x-cable-chain-support |  | 1 | PCB | Link | | | Click link above to download source |
|---|
| x-harness |  | 1 | CHA | Link | | | Click link above to download source |
|---|
| head-harness |  | 1 | CHA | Link | | | Click link above to download source |
|---|
| top-camera-cable |  | 1 | CHA | Link | | | Click link above to download source |
|---|
| pu-tube-4x2.5-red |  | 2 | PNU | Link | | | Unit in meters. |
|---|
| pu-tube-4x2.5-blue |  | 2 | PNU | Link | | | Unit in meters. |
|---|
| linear-rail-100mm |  | 2 | MISC | Link | Link | | Each rail includes 1pcs MGN9C-linear-rail-carriage |
|---|
| datum-board |  | 1 | PCB | Link | | | Click link above to download source |
|---|
| bottom-ring-light |  | 1 | PCA | Link | | | Click link above to download source |
|---|
| top-ring-light |  | 1 | PCA | Link | | | Click link above to download source |
|---|
| xy-limit |  | 1 | PCA | Link | | | Click link above to download source |
|---|
| z-limit |  | 1 | PCA | Link | | | Click link above to download source |
|---|
| top-camera |  | 1 | PCA | Link | | | |
|---|
| bottom-camera |  | 1 | PCA | Link | | | |
|---|
| staging-plate |  | 2 | PCB | Link | | | Remove camera knock-out plate from center of PCB if using as primary-staging-plate. |
|---|
| y1-motor-harness |  | 1 | CHA | Link | | | Click link above to download source |
|---|
| y2-motor-harness |  | 1 | CHA | Link | | | Click link above to download source |
|---|
| bottom-light-harness |  | 1 | CHA | Link | | | Click link above to download source |
|---|
| bottom-camera-cable |  | 1 | CHA | Link | | | Click link above to download source |
|---|
| mobo-blade1-harness |  | 1 | CHA | Link | | | Click link above to download source |
|---|
| blade2-blade3-harness |  | 1 | CHA | Link | | | Click link above to download source |
|---|
| blade-jumper-harness |  | 2 | CHA | Link | | | Click link above to download source |
|---|
| blade12-PCB |  | 2 | PCA | Link | | | Click link above to download source. Make one PCB for slot #1 - #12 and the other for #26 - #37. |
|---|
| blade13-PCB |  | 2 | PCA | Link | | | Make one PCB for slot #13 - #25 and the other for #38 - #50. |
|---|
| 24v-power-supply |  | 1 | PSU | Link | | | A power supply that can output at least 6A @ 24v DC is recommended. Assumed that requisite AC power cord is included. |
|---|
| zip-tie |  | 2 | MISC | Link | | | Zip ties that are approx 200mm in length are recommended. |
|---|
| rubber-band |  | 4 | MISC | Link | | | It's best to use silicone rubber bands that do not dry out. |
|---|
| rubber-feet |  | 8 | MISC | Link | Link | | 10mm dia adhesive-backed rubber feet for use on the front-left-leg, front-right-leg, and 2x back-leg |
|---|
| vslot-extrusion-20mmx20mmx600mm |  | 7 | EXT | Link | | | |
|---|
| corner-bracket |  | 6 | MCM | Link | Link | | |
|---|
